Learning Objectives

After completing this lesson, you’ll be able to:

Use coordinate system parameters to reproject spatial data.
Select features in the Data Inspector to inspect coordinate system information.
Use the Reprojector transformer to reproject spatial data.

Resources

Starting workspace
- C:\FMEData\Workspaces\IntegrateSpatialData\exercise-use-coordinate-systems.fmw
Complete workspace
- C:\FMEData\Workspaces\IntegrateSpatialData\exercise-use-coordinate-systems-complete.fmw

Exercise

In this exercise, you work as a GIS analyst for a city government. You work with spatial data consisting of the city's parks' boundaries and some attributes. The data is stored in MapInfo TAB format as polygons (vector data).

The parks team has decided that the output data should be in an Albers Equal Area projection (coordinate system = BCALB-83). They think it will take ages to set this up, but we'll show them differently.

1) Start FME Workbench

Start FME Workbench 2026.1 and open the starting workspace.

This existing workspace reads the park data, performs some schema editing, filters out dog parks, calculates park areas and average park areas, and creates a label feature type before writing to AutoCAD DWG.

2) Edit Source (Reader) Coordinate System

In the Navigator window, locate the Parks [MITAB] reader and expand its list of settings.

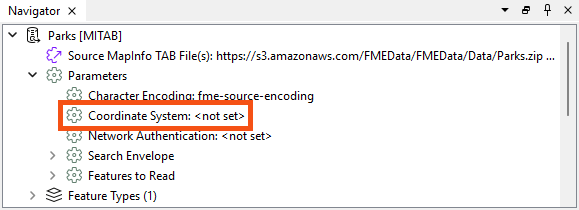

Locate the parameter labeled ‘Coordinate System.’ The original value should be <not set>:

Finding an unset coordinate system on a reader in the Navigator

Double-click the reader Coordinate System parameter to open an edit dialog.

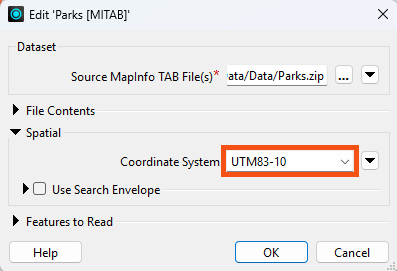

In the Coordinate System field, enter the name UTM83-10 or select it from the Coordinate System Gallery by selecting "More Coordinate Systems..." from the bottom of the drop-down list:

Setting a coordinate system in the reader parameters dialog

Remember, when a reader’s Coordinate System parameter is defined as <not set>, FME will automatically try to determine the correct coordinate system from the dataset.

When the source dataset is in a format that stores coordinate system information (as in this example), you can safely leave the parameter unset. So this step isn’t essential.

However, you must set this parameter when reprojecting source data that does not store coordinate system information; otherwise, an error will occur during translation.

3) Edit Destination (Writer) Coordinate System

You can find the coordinate system setting for the destination (writer) dataset.

Again, the current value should default to <not set>.

Double-click the parameter and enter the coordinate system name BCALB-83 or select it from the Coordinate System Gallery by selecting "More Coordinate Systems..." from the bottom of the drop-down list.

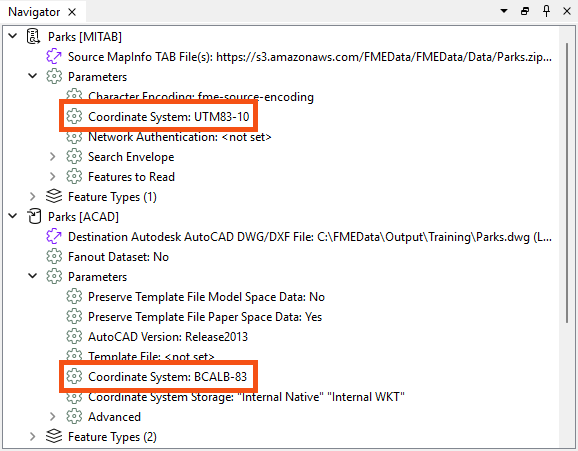

The Navigator window will now look like this:

Viewing set coordinate systems in the Navigator

4) Run the Workspace

Save and then run the workspace.

In the log file, you should be able to find:

FME Configuration: Source coordinate system for reader MITAB_1[MITAB] set to `UTM83-10'
...
FME Configuration: Destination coordinate system set to `BCALB-83'

5) Inspect the Output

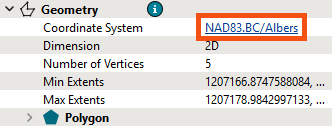

Inspect the newly reprojected dataset and select a feature. The Record Information window's Geometry section should report that the data is now in BCALB-83 (stored as NAD83.BC/Albers). Optionally, click on the coordinate system name in that window; a new dialog will display all the coordinate system parameters.

Viewing coordinate system information in the Record Information Window

If the background map is activated when a dataset is opened, then the contents of that dataset are automatically reprojected to Spherical Mercator to match the background map. If you wish to see the data as it appears in its coordinate system, click on your background map name in the Visual Preview window and select Background Map Off.

Challenge

Instead of using the reader/writer parameters in the Navigator window, why not try this exercise using the Reprojector (or CSMapReprojector) transformer? Where should the transformer be placed in the workspace? Why is this important?
